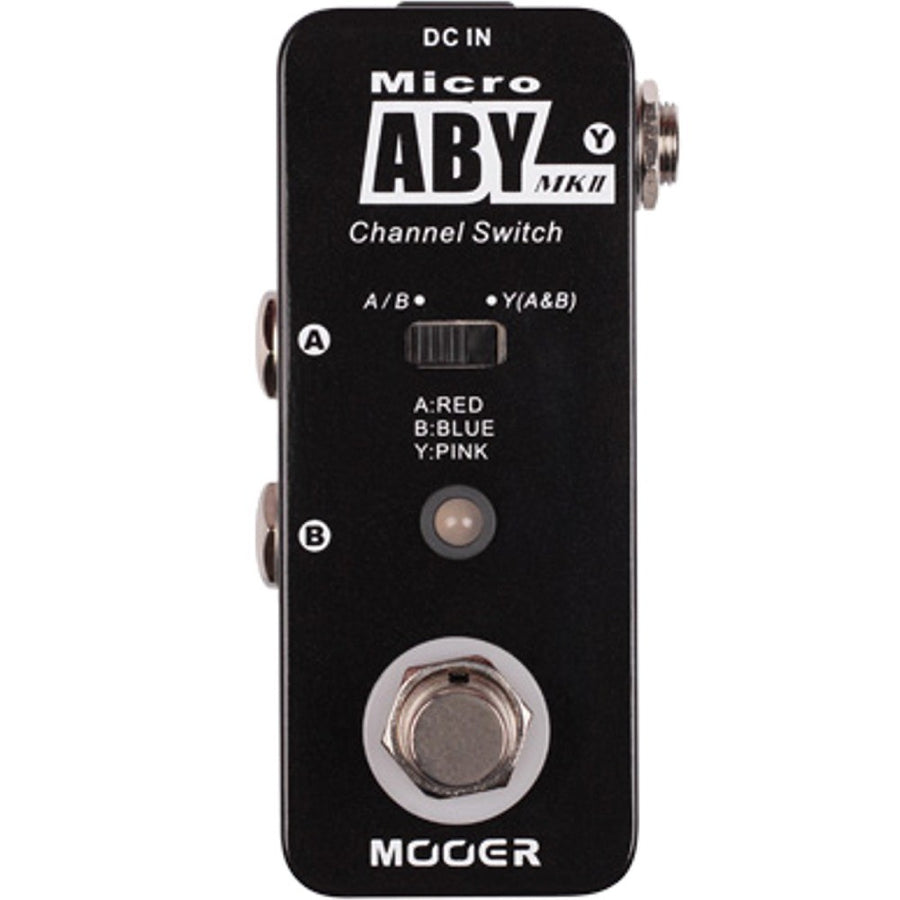

MOOER Micro ABY MKII – 2-Channel A/B/Y Switch Pedal
Take control of your signal routing with the MOOER Micro ABY MKII, a compact and versatile A/B/Y switcher designed for guitarists, bassists and musicians who need more flexibility from their rig. Whether you want to switch between two amplifiers, alternate between two instruments, or run two signal paths simultaneously, the Micro ABY MKII gives you a simple and reliable way to do it.
With its clever reversible design, the Micro ABY MKII can operate as either A/B to Y or Y to A/B, making it far more versatile than a basic channel switcher. Use it to select between two amps or effects chains, switch between two instruments feeding a single amplifier, or use the Y(A&B) mode to send your signal to both outputs at the same time.
The Y(A&B) mode is particularly useful for players running dual-amp or parallel setups. Instead of choosing between A and B, both connections can be active simultaneously, opening up options for stereo-style rigs, multiple effects paths and creative signal routing.
Despite its tiny footprint, the Micro ABY MKII is built with a rugged full-metal enclosure and features true bypass switching, making it an excellent addition to a crowded pedalboard. Its compact 93.5mm × 42mm × 52mm design takes up very little valuable pedalboard space.
Another handy feature is its passive switching circuit. The pedal can perform its basic switching functions without a power supply, although a standard 9V DC centre-negative supply is required if you want the LED indicators to illuminate. The LEDs provide useful visual confirmation of the selected routing, with different colours indicating the active mode/channel.
Key Features
-
Reversible A/B/Y operation – use the pedal from A/B to Y or Y to A/B.
-
A/B switching – select between two outputs or switch between two input sources.
-
Y(A&B) mode – send the signal to both A and B simultaneously.
-
Ideal for dual-amp setups – quickly switch between two amplifiers or run both together.
-
Two-input/one-output operation – switch between two instruments or signal sources.
-
Passive signal switching – basic switching operation works without external power.
-
LED status indicators – clearly show the selected channel/mode when powered.
-
True bypass – helps preserve your original signal when the pedal is bypassed.
-
Full-metal enclosure – tough construction designed for regular stage and rehearsal use.
-
Ultra-compact design – takes up minimal space on your pedalboard.
-
Three 1/4-inch mono jacks – A, B and Y connections for flexible routing.
-
9V DC operation – uses a standard regulated 9V DC centre-negative power supply for LED operation.
-
Dimensions: 93.5mm × 42mm × 52mm.
-
Weight: approximately 160g.
Perfect For
The MOOER Micro ABY MKII is a smart choice for guitarists who want to:
- Switch between two guitar amplifiers.
- Run two amplifiers simultaneously.
- Switch between two guitars through one amplifier.
- Select between different effects chains.
- Create parallel signal paths.
- Experiment with multi-amp and wet/dry-style setups.
- Add flexible signal routing without taking up much pedalboard space.
Available in stock at Muso's Stuff.
If you need a compact, no-nonsense solution for switching between instruments, amplifiers or signal paths, the MOOER Micro ABY MKII delivers a lot of routing flexibility in a seriously small package.
