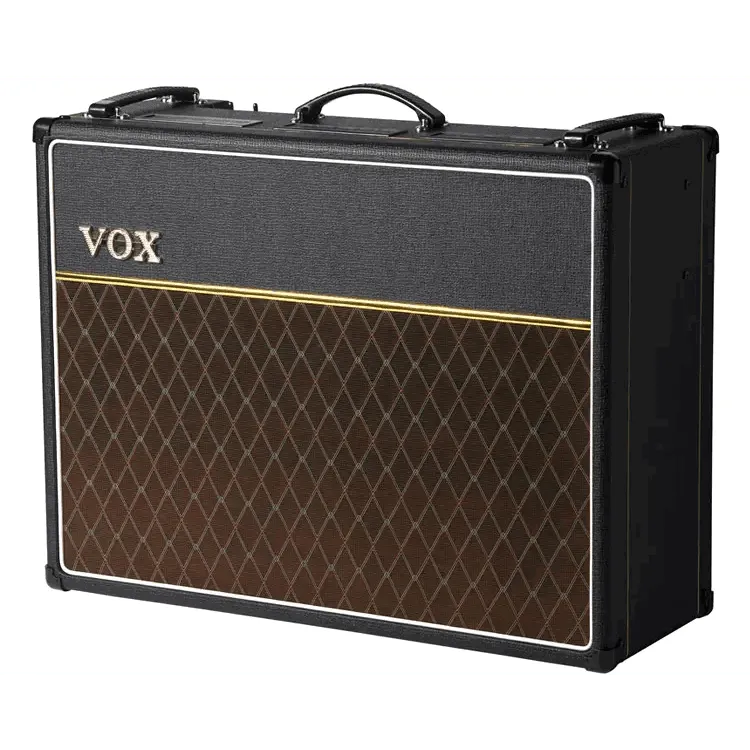

VOX AC30 2x12 Guitar Amp Combo

The VOX AC30 combo amp has been an icon for decades, known as the sound that powered the 1960s' "British Invasion." Based on the classic AC30 design, the all-new Custom Series AC30C2 and AC30C2X offer numerous up-to date enhancements, delivering the most versatile AC30 design in VOX history.

An Evolution in Tone

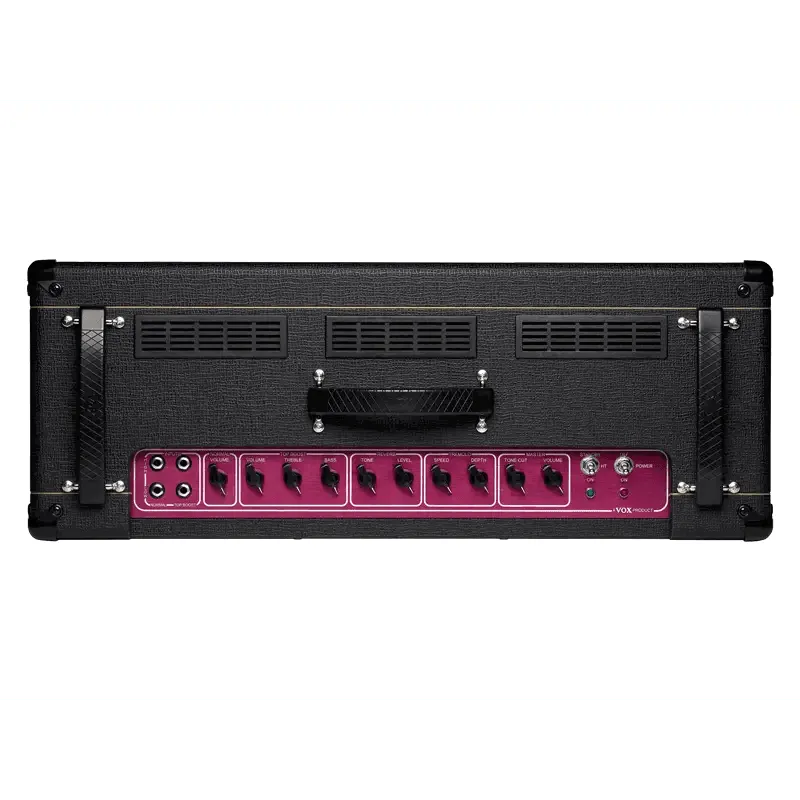

VOX Custom Series amps offer two channels: Normal and Top-Boost. Each channel is equipped with its own Volume control, and the Top Boost channel offers highly interactive Treble and Bass tone controls. This powerful channel pairing provides an abundance of tone-crafting control, letting you dial in a classic sound that is all your own.

Both channels rely on the Tone Cut and Volume controls in the Master section. The Tone Cut control operates in the power stage rather than the preamp stage, allowing an additional degree of tone-shaping. The Master Volume control works in conjunction with the individual volumes of each channel to create just the right degree of gain-staging. By balancing the individual and Master volumes, the Custom Series can deliver everything from a clean VOX "chimey" sound to a powerful overdriven tone.

Sound in Motion

Custom Series amplifiers come with a variety of effects to enhance your sound. With adjustable speed and depth, the VOX Classic Tremolo effect lets you shape your tone exactly how you want it. You'll also enjoy a spacious sound thanks to the warm Spring Reverb that's included on all Custom Series amps. The AC30C2 and AC30C2X also come with an extra tone control in the Reverb section and an effects loop for adding in your favorite effects. And with the true "Bypass" switching, you can take the entire effect loop out of the circuit as needed. All of this is controllable via the VOX VFS2 footswitch.

Power Sharing

The AC30C2 and the AC30C2X amps make use of 3 x 12AX7 preamp tubes and use 4 x EL84 tubes to deliver 30 watts of power. The AC30C2 uses two 12" Celestion G12M Greenback speakers. The AC30C2X uses two 12" Celestion Alnico Blues. All models in the Custom Series offer a switchable 8/16 ohm output jack for powering an external speaker cabinet when you need to speak with a little more authority; using this jack will mute the internal speakers. Additionally, a 2nd extension speaker jack allows you to run an extra 16 ohm cabinet along with the internal speakers for a fuller sound.

VOX AC30C2 Custom Specifications

• Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
• Weight: 32.2 kg / 70.99 lbs.
• Output Power: 30 Watts RMS into 16 Ohms
• Speaker: 2 x 12" 8 ohm Celestion G12M Greenback
• Inputs: Normal input jack (high and low), Top Boost input jack (high and low), FX RETURN jack, Footswitch jack
• Outputs: External loudspeaker jack, Extension loudspeaker jack, FX SEND jack
• Options: VFS2A Footswitch
