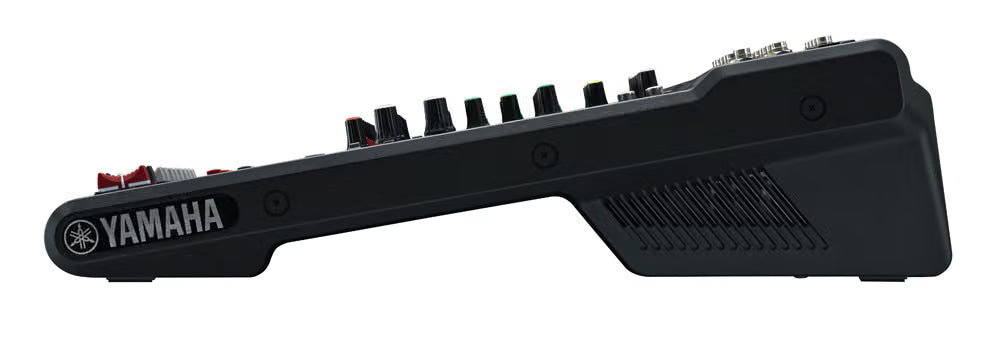

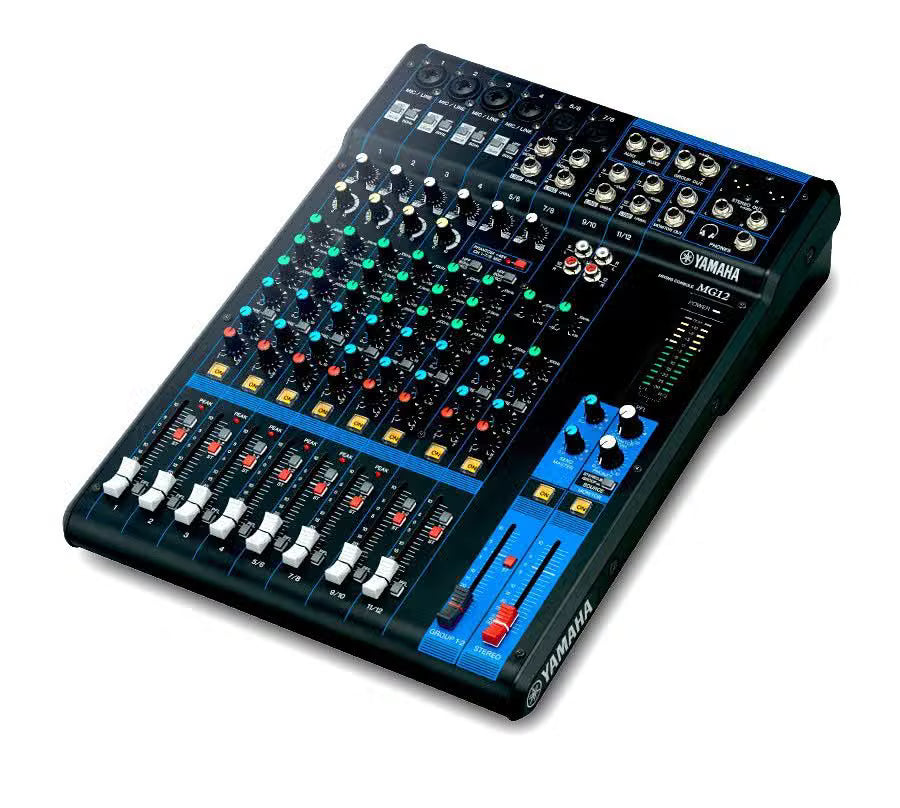

The Yamaha MG12 is a professional-quality 12-channel analogue mixing console designed for musicians, bands, venues, rehearsal spaces, schools, churches, presentations and live sound applications. Built around Yamaha’s renowned MG Series design, the MG12 delivers clean, reliable audio control in a rugged and easy-to-use format.
With 12 input channels, including 4 mono microphone/line channels and 4 stereo channels, the MG12 gives you plenty of flexibility for connecting microphones, keyboards, playback devices, guitars and other audio equipment. It can handle up to 6 microphone inputs and 12 line inputs, making it a practical choice for small bands, performers and live sound setups.
Professional Yamaha D-PRE Microphone Preamps
At the heart of the MG12 are Yamaha’s D-PRE microphone preamps, using an inverted Darlington circuit to provide detailed, natural-sounding audio with plenty of headroom. Whether you're mixing vocals, acoustic instruments or microphones for a live performance, the MG12 gives you the control and sound quality Yamaha is known for.
Flexible Mixing and Routing
The MG12 provides two GROUP buses, one stereo bus and two AUX sends, giving you useful routing options for live sound and more complex setups. The two AUX sends can be used for monitoring, external effects or other signal-routing requirements, while the GROUP buses make it easier to control multiple channels together.
Built-In Compression and Channel Control
The mono input channels feature Yamaha’s practical 1-knob compressor, allowing you to quickly control dynamics and achieve a more consistent sound without having to navigate complicated menus.
The MG12 also includes PAD switches on the mono inputs, helping accommodate higher-level signals while maintaining clean and controlled operation.
Phantom Power for Condenser Microphones
With +48V phantom power, the MG12 can power compatible condenser microphones directly from the mixer. This makes it suitable for vocal microphones, studio-style microphones and a wide range of modern recording and live-performance setups.
Built for the Real World

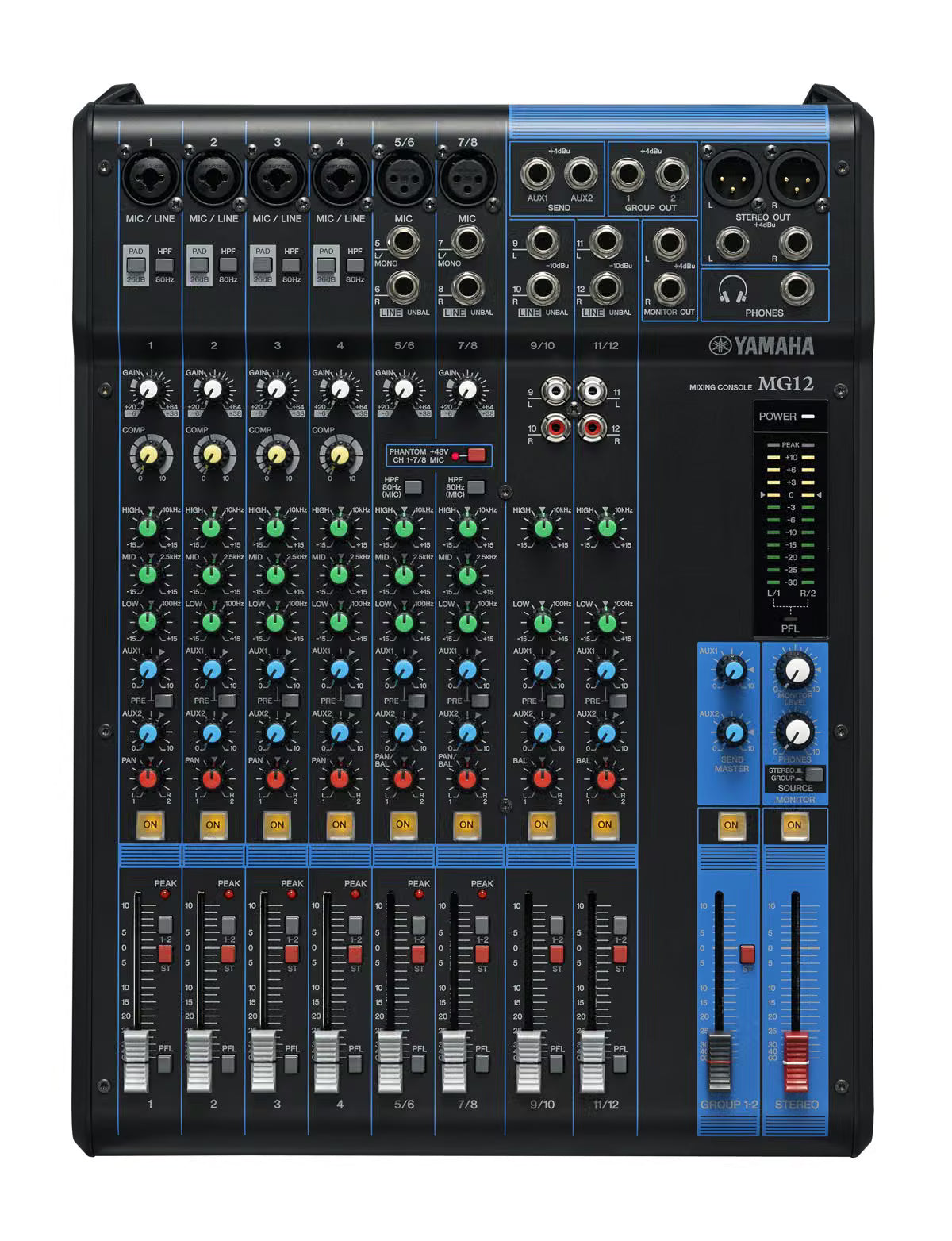

Yamaha has designed the MG Series with a rugged metal chassis, making the MG12 well suited to the demands of regular rehearsal, live performance and professional audio use. The controls are laid out in the traditional analogue mixer format, making it straightforward to see and adjust your levels, EQ, routing and outputs at a glance.
Whether you're putting together a small PA system, running a rehearsal room, mixing a live band or setting up audio for a venue, the Yamaha MG12 provides the dependable analogue mixing control you need.
Key Features
12-channel analogue mixing console
Up to 6 microphone / 12 line inputs
4 mono mic/line channels + 4 stereo channels
Yamaha D-PRE microphone preamps
Inverted Darlington circuit design
1-knob compressors on mono input channels
PAD switches on mono inputs
+48V phantom power
2 GROUP buses
1 Stereo bus
2 AUX sends

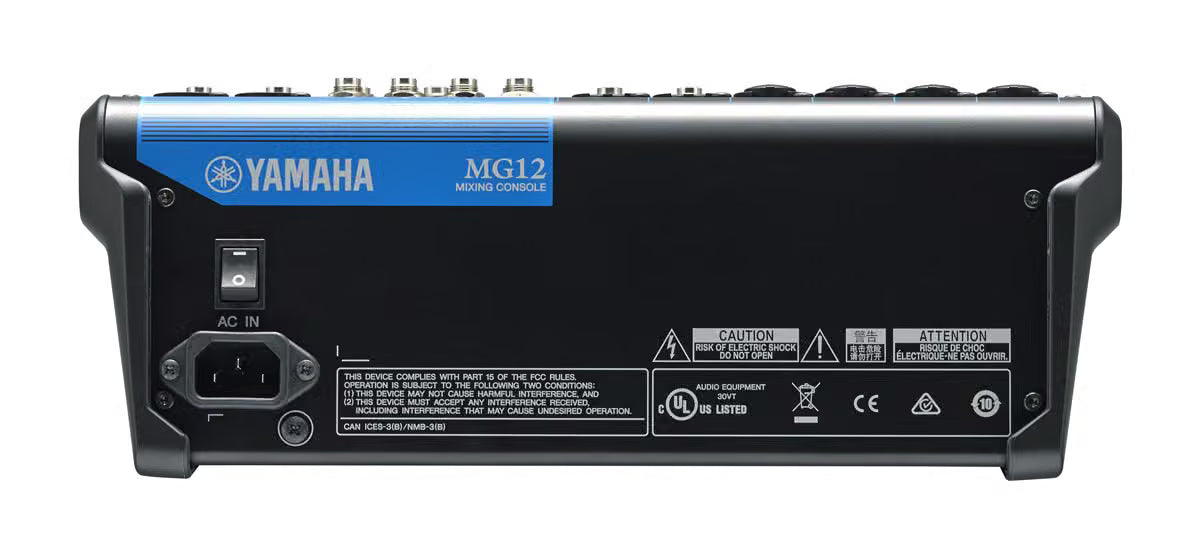

XLR balanced outputs
Rugged metal chassis
Traditional analogue controls for quick, intuitive operation
Ideal for live sound, bands, rehearsal rooms, venues, schools, churches and installations
Optional RK-MG12 rack-mount kit available
Compact yet professional Yamaha build quality
Specifications
Model: Yamaha MG12 SKU: ZT41880 Channels: 12 Mono Inputs: 4 Stereo Inputs: 4 Maximum Mic Inputs: 6 Maximum Line Inputs: 12 Group Buses: 2 AUX: 2 Stereo Bus: 1 Phantom Power: +48V Outputs: XLR balanced stereo outputs Construction: Metal chassis Dimensions: 308 × 118 × 422 mm Weight: 4.2 kg
Why Choose the Yamaha MG12?
If you want a solid, traditional analogue mixer without unnecessary complexity, the Yamaha MG12 is a seriously practical choice. It gives you the essential tools needed to mix microphones and instruments properly, while Yamaha’s D-PRE preamps, rugged construction and straightforward control layout make it suitable for both experienced sound engineers and musicians learning their way around live mixing.
The Yamaha MG12 is a dependable workhorse for live sound — simple to operate, flexible enough for a wide range of setups and built with the quality Yamaha is known for.
