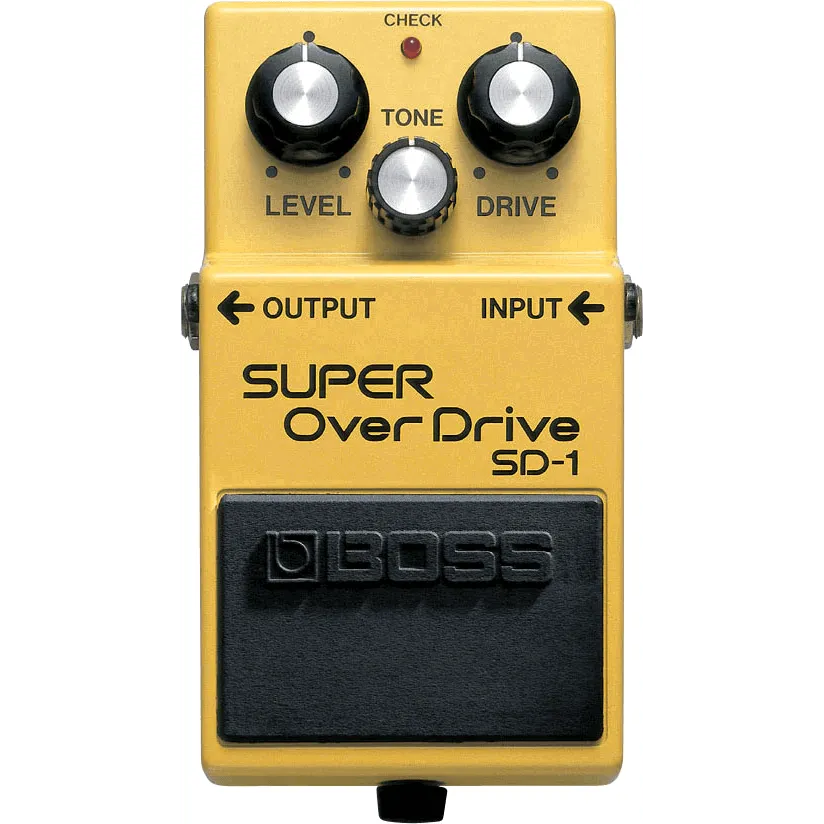

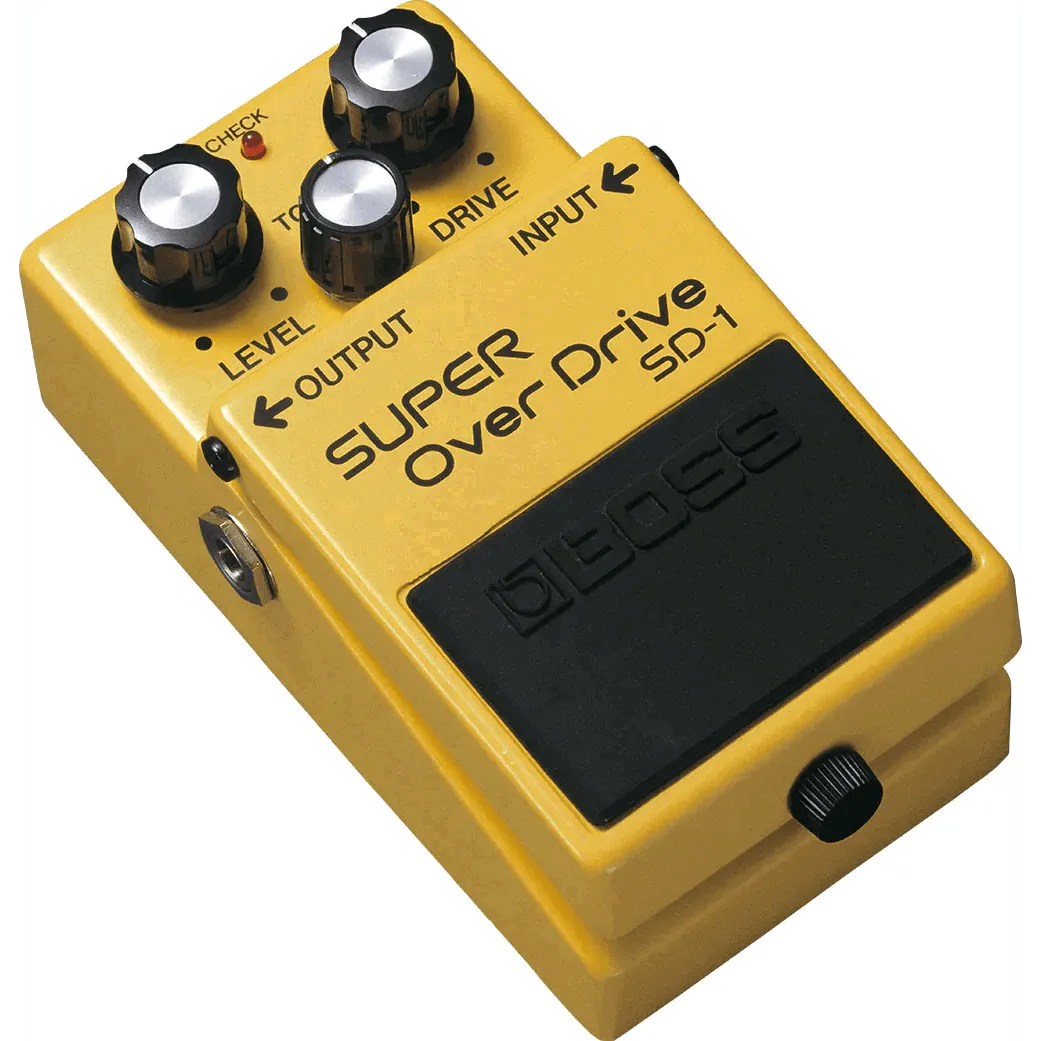

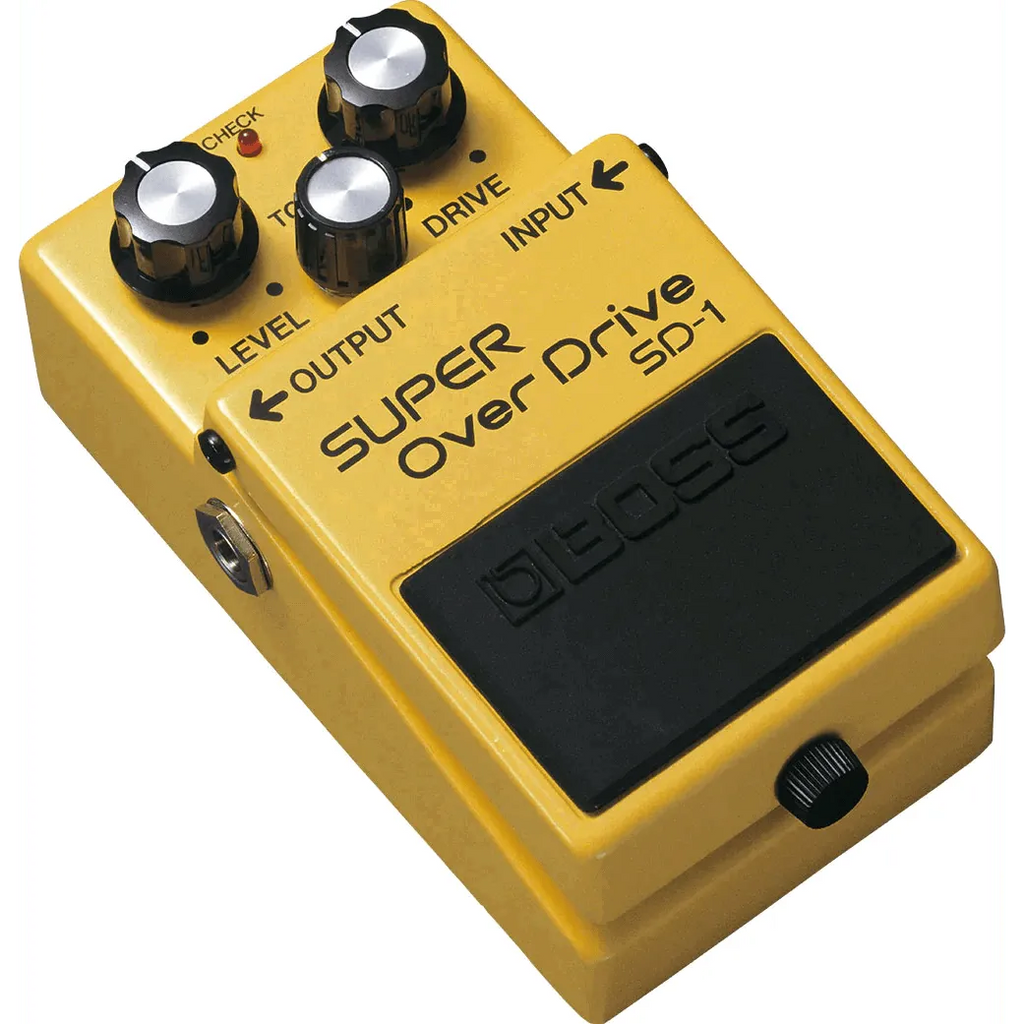

SD-1
Super OverDrive
WARM, TUBE DRIVE SOUNDS
"The SD-1 Super OverDrive pedal produces warm and natural distortion similar to an overdriven tube amplifier while preserving the subtle nuances of a player's picking technique. This is one of BOSS' subtle and smooth overdrive pedals, ideal for blues and rock."
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: DRIVE knob
- TONE knob
LEVEL knob
Pedal switch
- Indicator: CHECK indicator (Used for indication of check battery)
- Connectors: INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
DC IN jack
- Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series: sold separately)
- Current Draw: 10 mA
- Expected battery life under continuous use:
- Carbon: Approx. 60 hours
Alkaline: Approx. 90 hours
*These figures will vary depending on the actual conditions of use.
- Accessories:
- Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
- Options (sold separately): AC adaptor: PSA series
- SIZE AND WEIGHT
- Width: 73 mm 2-7/8 inches
- Depth: 129 mm 5-1/8 inches
- Height: 59 mm 2-3/8 inches
- Weight (including battery): 360 g 13 oz
